Product Overview
EDS
EDS

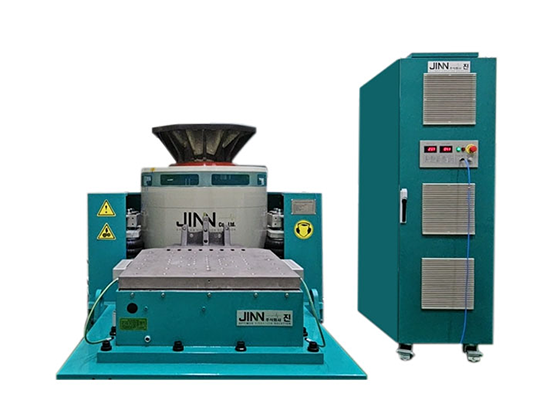

Electro Dynamic Shaker
Electro Dynamic Shaker
EDSVibration testing helps identify and eliminate design and structural defects that may cause product failure due to vibration. It allows for simulation of the effects of vibration and resolves transportation or operational issues before product shipment, significantly reducing field claim costs.
- Providing turn-key solution (Products > Installation > Training > Maintenance)
- 100% domestic maintenance service (prompt inspections and after-sales service)
- Comprehensive vibration testing services for a variety of capacities
Key Features of the Product
- 01
Wide frequency range (~3,000Hz)
- 02
Broad dynamic range
- 03
Quick installation, convenient controls, and precision control
- 04
Suitable for random and various composite vibrations
- 05
High precision test without waveform distortion
- 06
High acceleration testing capability
- 07
High durability of equipment (lifespan of over 10 years)

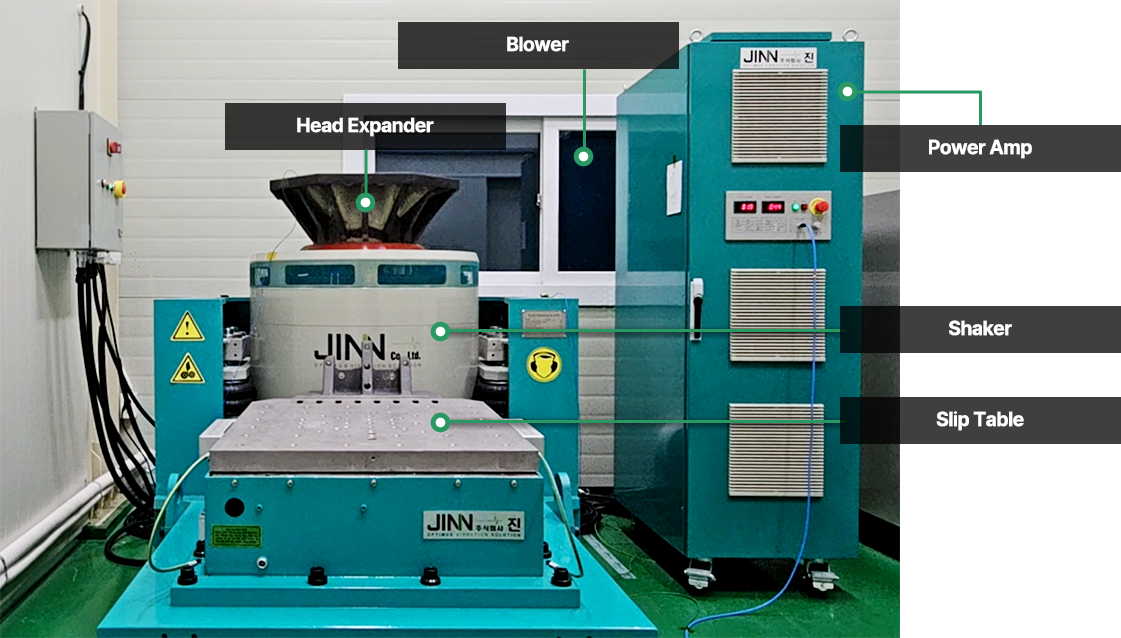

Product configuration diagram
Partner Companies
-

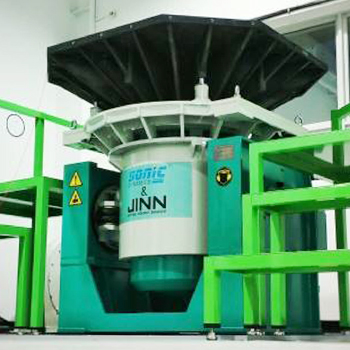

EDS Specialist Manufacturing CompanySonic Dynamics
Located in Suzhou, China, Sonic Dynamics specializes in manufacturing vibration testing equipment. They offer a wide range of products, from small modal shakers to large water-cooled vibration testers, and provide single-axis and multi-axis solutions.JINN Co., Ltd. is the exclusive domestic supplier of Sonic Dynamics products.
-

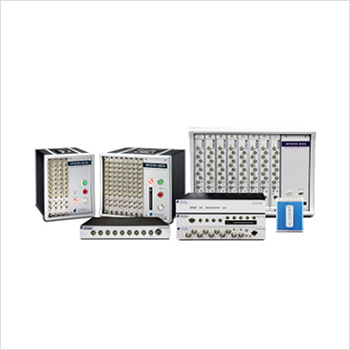

Vibration Controller manufacturing companyCrystal Instruments
Founded in 1996 in California, USA, Crystal Instrument is a leading company in the field of noise and vibration measurement and analysis. Known for its excellence in vibration controller technology, Crystal Instrument is a valued partner of JINN Co., Ltd.
-

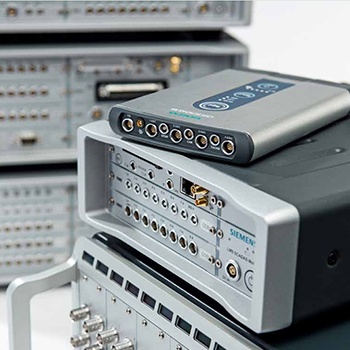

Global Technology CompanySIEMENS
Headquartered in Berlin and Munich, Germany, Siemens is an electrical and electronics company and has grown on the basis of exceptional engineering, quality, innovation, reliability, and a global business foundation. Siemens is a global leader in the measurement, analysis, and interpretation of noise and vibration, providing measurement, control, and analysis equipment both domestically and internationally. JINN Co., Ltd. is an official partner of Siemens Digital Industries Software.
Specifications by product
- Small Electro Dynamic Shaker(EDS)
- Medium Electro Dynamic Shaker(EDS)
- Large Electro Dynamic Shaker (Water-cooled EDS)
You can move left or right.
| Shaker(Model) | Capacity(Kgf) | Operating frequency range | Maximum displacement(mm) | Maximum acceleration(g) | Armature size(mm)/weight(kg) | Allowable payload(kg) | Required power(kVA) | Dimension of Shaker(LxDxH) |
|---|---|---|---|---|---|---|---|---|
| F500-120M | 50 | 7 to 5,000 | 20 | 30 | 120/1.7 | 20 | 1.2 | 440x330x200 |
| S011-120M | 100 | 5 to 6,000 | 25 | 65 | 120/1.5 | 100 | 3.5 | 400x360x470 |
| S021-150M | 200 | 5 to 4,000 | 38 | 80 | 150/2.5 | 100 | 5.0 | 660x585x590 |
| S031-150M | 300 | 5 to 4,000 | 38 | 100 | 150/3.0 | 120 | 6.0 | 720x590x625 |
| S061-185M | 690 | 5 to 4,500 | 51 | 115 | 185/6.0 | 300 | 17.5 | 930x715x755 |
| S061-230M | 690 | 5 to 4,000 | 51 | 100 | 230/8.3 | 300 | 17.5 | 930x715x755 |
